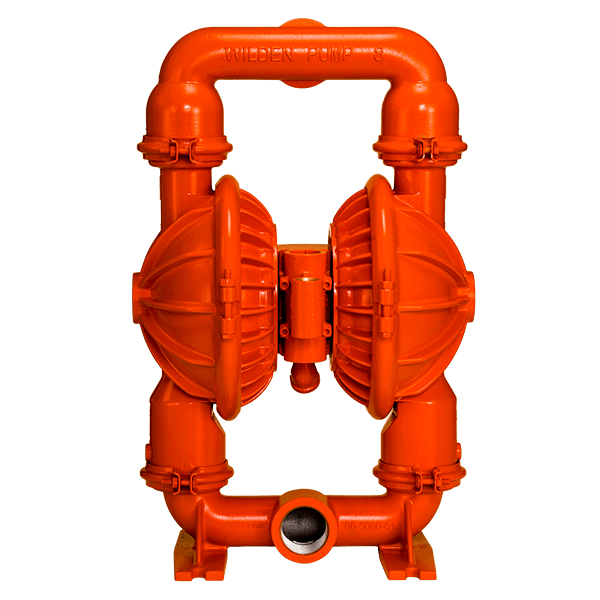

T8 Features
Famous for its long life and easy serviceability, the durable Wilden® Turbo-Flo™ Series is the first air distribution system (ADS) that originated in the air-operated double-diaphragm (AODD) pump industry. Though enhancements have been made, these pumps work well in certain applications where quality of the compressed air is a concern. These pumps are easy to maintain, cost effective, and economical. Portable and available in a single-point exhaust option for submersible applications, the Turbo-Flo excels in utilitarian-type applications, including the transfer of water, slurry and more.
- Simple air distribution system design, minimal moving parts
- Clamped design for lightweight and quick maintenance
- Ability to handle dirty air applications
- Single-point exhaust
Dimensions
Note: Dimensions vary by material and connection. For additional information, please refer to the T8 Metal Manual.
Flow Curve – TPE-Fitted
Note: Additional performance curves can be found in the T8 Metal Manual.
Specifications
Air Inlet
3/4" FNPT
Liquid Inlet
51 mm (2")
Liquid Discharge
51 mm (2")
Connection Type
NPT/BSPT (Threaded)Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
6.40 mm
(1/4")
Max Suction Lift Capability
Rubber:
6.40m
(21.00') Dry,
9.50m
(31.00') Wet
TPE:
6.10m
(20.00') Dry,
9.50m
(31.00') Wet
PTFE:
3.70m
(12.00') Dry,
9.50m
(30.98') Wet
Max Flow Rate
Rubber:
617.00 lpm
(163.00 gpm)
TPE:
613.00 lpm
(162.00 gpm)
PTFE:
534.00 lpm
(141.00 gpm)
Displacement Per Stroke
Rubber:
2.69 L
(0.71 gal)
TPE:
2.8 L
(0.74 gal)
PTFE:
1.51 L
(0.4 gal)
Wetted Housings
| Material | Ship Wt |
|---|---|
| Aluminum | 33.00 kg (72.00 lb) |
| Cast Iron | 52.00 kg (114.00 lb) |
Non-Wetted Housings
| Description | Material |
|---|---|
| Center Section | Aluminum, Polypropylene |
| Air Valve | Brass |
| Air Chamber | Aluminum |
Elastomer Options
| Material | Temperature Limits |
|---|---|
| Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
| EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
| FKM | -40.00°C to 177.00°C (-41.00°F to 350.00°F) |
| Neoprene | -18.00°C to 93.00°C (0.00°F to 200.00°F) |
| PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
| Polyurethane | -12.00°C to 66.00°C (10.00°F to 150.00°F) |
| Saniflex™ | -29.00°C to 104.00°C (-20.00°F to 220.00°F) |
| Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
Dimensional Drawings
