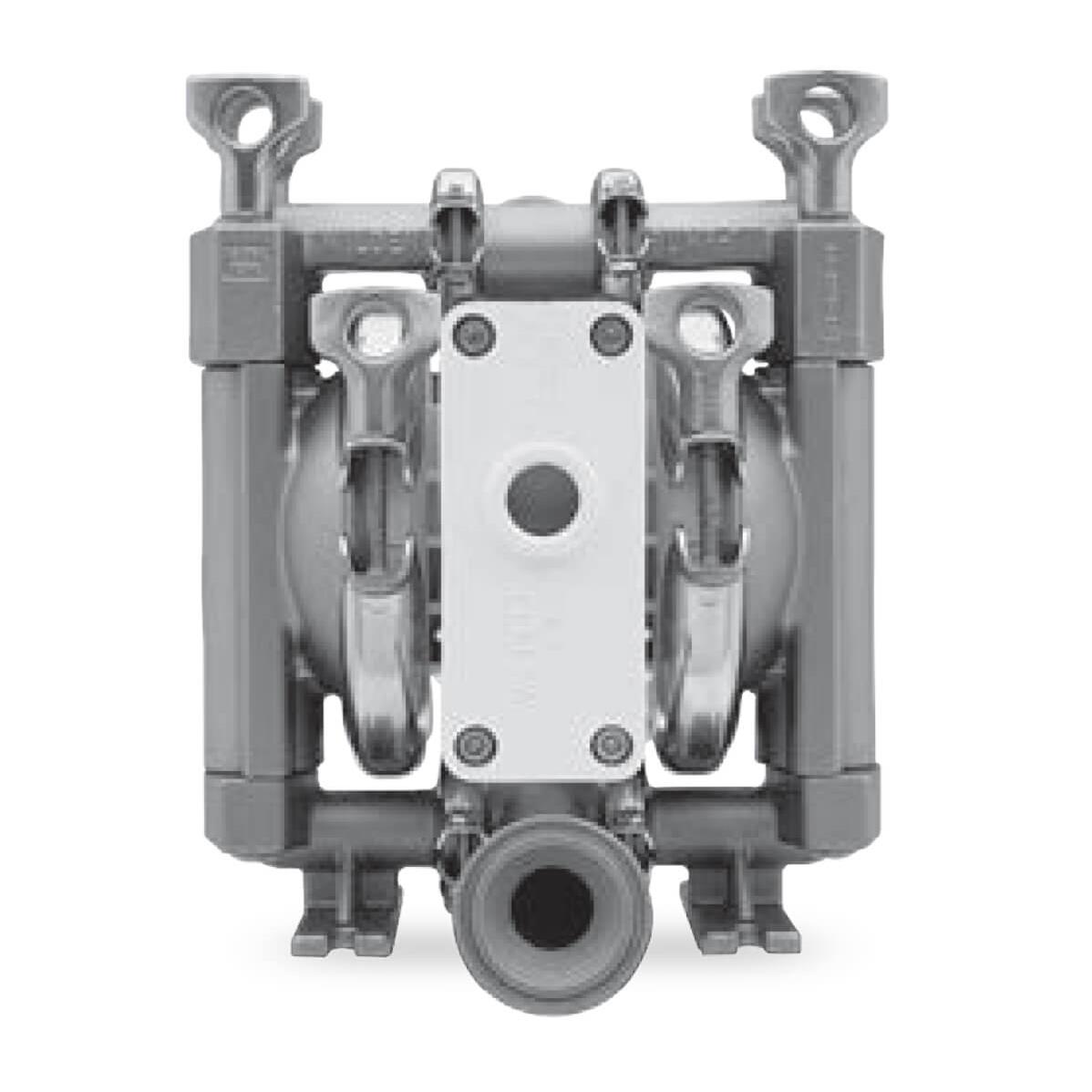

P1 Features
Saniflo™ FDA Series pumps are designed for standard food applications that don’t require the Hygienic™ Series (HS) design or clean-in-place (CIP) capability. They are well suited for sanitary applications moving high-acid, high-sugar and high-fat media. With simple installation and robust design, FDA pumps comply with FDA, CE, EC 1935/2004 and ATEX requirements.
- Tri-Clamp® connections with wingnut clamped design
- Quick breakdown/reassembly for cleaning
- Shear sensitive
- Robust durability
- Straight flow-through design
Dimensions
Note: Dimensions vary by material and connection. For additional information, please refer to the P1 Metal Manual.
Flow Curve – TPE-Fitted
Note: Dimensions vary by material and connection. For additional information, please refer to the P1 Metal Manual.
Specifications
Air Inlet
1/4" FNPT
Liquid Inlet
13 mm (1/2")
Liquid Discharge
13 mm (1/2")
Connection Type
Tri-Clamp®Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
1.59 mm
(1/16")
Max Suction Lift Capability
Rubber:
5.80m
(19.00') Dry,
9.50m
(31.00') Wet
TPE:
5.20m
(17.00') Dry,
9.50m
(31.00') Wet
PTFE:
4.90m
(16.00') Dry,
9.50m
(31.00') Wet
Max Flow Rate
Rubber:
58.70 lpm
(15.50 gpm)
TPE:
58.30 lpm
(15.39 gpm)
PTFE:
54.40 lpm
(14.40 gpm)
Displacement Per Stroke
Rubber:
0.11 L
(0.029 gal)
TPE:
0.11 L
(0.029 gal)
PTFE:
0.09 L
(0.025 gal)
Wetted Housings
| Material | Ship Wt |
|---|---|
| Stainless Steel | 9.00 kg (20.00 lb) |
Non-Wetted Housings
| Description | Material |
|---|---|
| Center Block | Polypropylene, Conductive Polypropylene, Acetal, Conductive Acetal |
| Air Valve | Polypropylene, Conductive Polypropylene, Acetal, Conductive Acetal |
Elastomer Options
| Material | Temperature Limits |
|---|---|
| EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
| PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
| Saniflex™ | -29.00°C to 104.00°C (-20.00°F to 220.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
